Visualize Data as a chart Pro / Enterprise

This sample demonstrates how to use Kreya's scripting capabilities to visualize REST API response data as a chart using Apache ECharts.

Overview​

The API returns a simple JSON response with labels and values. The script processes this data and renders it as a bar chart in a preview tab.

Example API Response​

[
  { "label": "Value 0", "value": 10 },
  { "label": "Value 1", "value": 20 },
  { "label": "Value 2", "value": 15 }
]

Script​

The following operation script listens for the API call completion, processes the response, and renders a bar chart:

kreya.rest.onCallCompleted(async resp => await kreya.preview.html(`
    <html>
      <body>
        <div id="chart" style="width: 100%; height: 100%;"></div>
        <script src="https://cdn.jsdelivr.net/npm/[email protected]/dist/echarts.min.js"></script>
        <script>
          const chart = echarts.init(document.getElementById('chart'));
          chart.setOption({
              title: {
                text: 'Values'
              },
              animation: false,
              xAxis: {
                type: 'category',
                data: ${JSON.stringify(resp.response.content.map(d => d.label))}
              },
              yAxis: {
                type: 'value'
              },
              series: [{
                type: 'bar',
                data: ${JSON.stringify(resp.response.content.map(d => d.value))}
              }]
          });
          window.addEventListener('resize', () => chart.resize());
        </script>
      </body>
    </html>
    `, 'Data'));

How it works​

  1. API call completion: The script listens for the completion of an API call using kreya.rest.onCallCompleted.
  2. Data processing: The API response is parsed to extract labels and values for the chart.
  3. Chart rendering: The script dynamically generates an HTML page with a <div> for the chart and includes the Apache ECharts library.
  4. Chart configuration: The chart is configured with a title, x-axis (categories), y-axis (values), and a bar series.
  5. Responsive design: The chart resizes automatically when the window size changes.

Output​

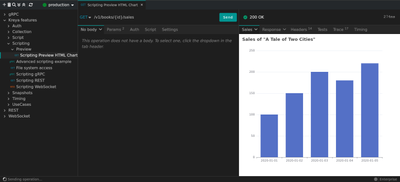

When the script runs, the chart will look similar to this:
